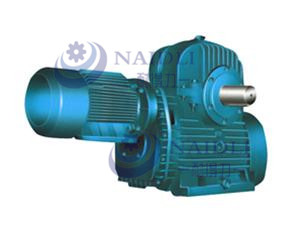

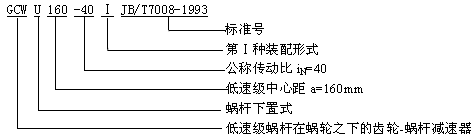

型號 | 高速級及低速級中心距 | ||||||||||
高速級 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | ||||
低速級 | 100 | 125 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | |
GCWS CCWS | 高速級 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |||
低速級 | 100 | 125 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | |
GCWO CCWO | 高速級 | 63 | 80 | 100 | 125 | — | — | — | |||
低速級 | 100 | 125 | 160 | 200 | 250 | — | — | — | — | — |
公稱傳動比i | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3550 |
公稱傳動比i | 35.5 | 40 | 45 | 50 | 56 | 63 | 71 | 80 | 90 | 100 |
112 | 125 | 140 | 160 | 180 | 200 | 224 | 250 | 280 | 315 |
低速級中心距a/mm | 公稱傳動比iN | |||||||||||||
200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3550 | |
實際傳動比i | ||||||||||||||
196.39 | 240.25 | 320.23 | 392.77 | 480.5 | 604.5 | 759.5 | 961 | 1209 | 1519 | 1950 | 2450 | 2940 | — | |
125 | 196.39 | 240.25 | 309.90 | 380.10 | 465 | 585 | 735 | 930 | 1170 | 1470 | 1950 | 2450 | 2891 | — |
160 | 191.12 | 240.25 | 320.23 | 382.23 | 480.50 | 635.50 | 790.50 | 961 | 1271 | 1581 | 2050 | 2550 | 3111 | 3599 |
200 | 191.12 | 240.25 | 320.23 | 382.23 | 480.50 | 635.50 | 759.50 | 961 | 1271 | 1550 | 2050 | 2500 | 3000 | 3600 |
250 | 191.12 | 240.25 | 320.23 | 382.23 | 480.50 | 635.50 | 790.50 | 930 | 1271 | 1550 | 2050 | 2500 | 2950 | 3481 |
315 | 191.12 | 240.25 | 320.23 | 382.23 | 480.50 | 635.50 | 759.50 | 961 | 1271 | 1550 | 2050 | 2500 | 2950 | 3599 |
355 | 191.12 | 240.25 | 320.23 | 382.23 | 480.50 | 635.50 | 759.50 | 961 | 1271 | 1550 | 2091 | 2550 | 2900 | 3538 |
400 | 196.39 | 240.25 | 320.23 | 392.77 | 480.50 | 635.50 | 790.50 | 961 | 1271 | 1550 | 2091 | 2550 | 2950 | 3540 |
450 | 196.39 | 242.89 | 330.56 | 405.44 | 496 | 656 | 816 | 992 | 1312 | 1600 | 2132 | 2600 | 2950 | 3540 |
500 | 191.12 | 242.89 | 340.89 | 406.89 | 511.50 | 676.50 | 841.50 | 1023 | 1353 | 1650 | 2091 | 2550 | 2950 | 3481 |
低速級 中心距 a/mm | 公稱傳動比iN | |||||||||
35.5 | 40 | 45 | 50 | 56 | 63 | 71 | 80 | 90 | 100 | |
實際傳動比i | ||||||||||
37.20 | 40.24 | 45.10 | 50.80 | 56.00 | 65.95 | 74.19 | 84.15 | 89.97 | 101.68 | |
125 | 37.20 | 40.24 | 45.10 | 50.80 | 56.00 | 65.95 | 74.19 | 84.15 | 89.97 | 101.68 |
160 | 37.20 | 41.82 | 47.24 | 50.32 | 57.40 | 66.06 | 71.15 | 80.05 | 90.63 | 100.64 |
200 | 37.20 | 41.82 | 47.24 | 50.32 | 58.22 | 65.07 | 73.21 | 83.08 | 95.27 | 100.64 |
250 | 37.34 | 41.79 | 46.98 | 50.81 | 56.62 | 64.74 | 73.21 | 83.08 | 95.27 | 101.61 |
315 | 37.20 | 41.82 | 45.56 | 50.84 | 57.05 | 64.43 | 73.37 | 84.42 | 90.63 | 101.68 |
355 | 35.39 | 39.78 | 43.33 | 48.36 | 54.27 | 61.29 | 69.79 | 80.30 | 86.21 | 96.72 |
400 | 37.21 | 41.82 | 46.52 | 52.11 | 58.71 | 65.07 | 73.21 | 83.09 | 94.05 | 104.22 |
450 | 37.21 | 41.82 | 46.52 | 52.11 | 58.71 | 65.07 | 73.21 | 83.09 | 94.05 | 104.22 |
500 | 37.34 | 41.79 | 45.10 | 50.81 | 57.60 | 65.07 | 72.24 | 83.08 | 89.97 | 101.61 |
